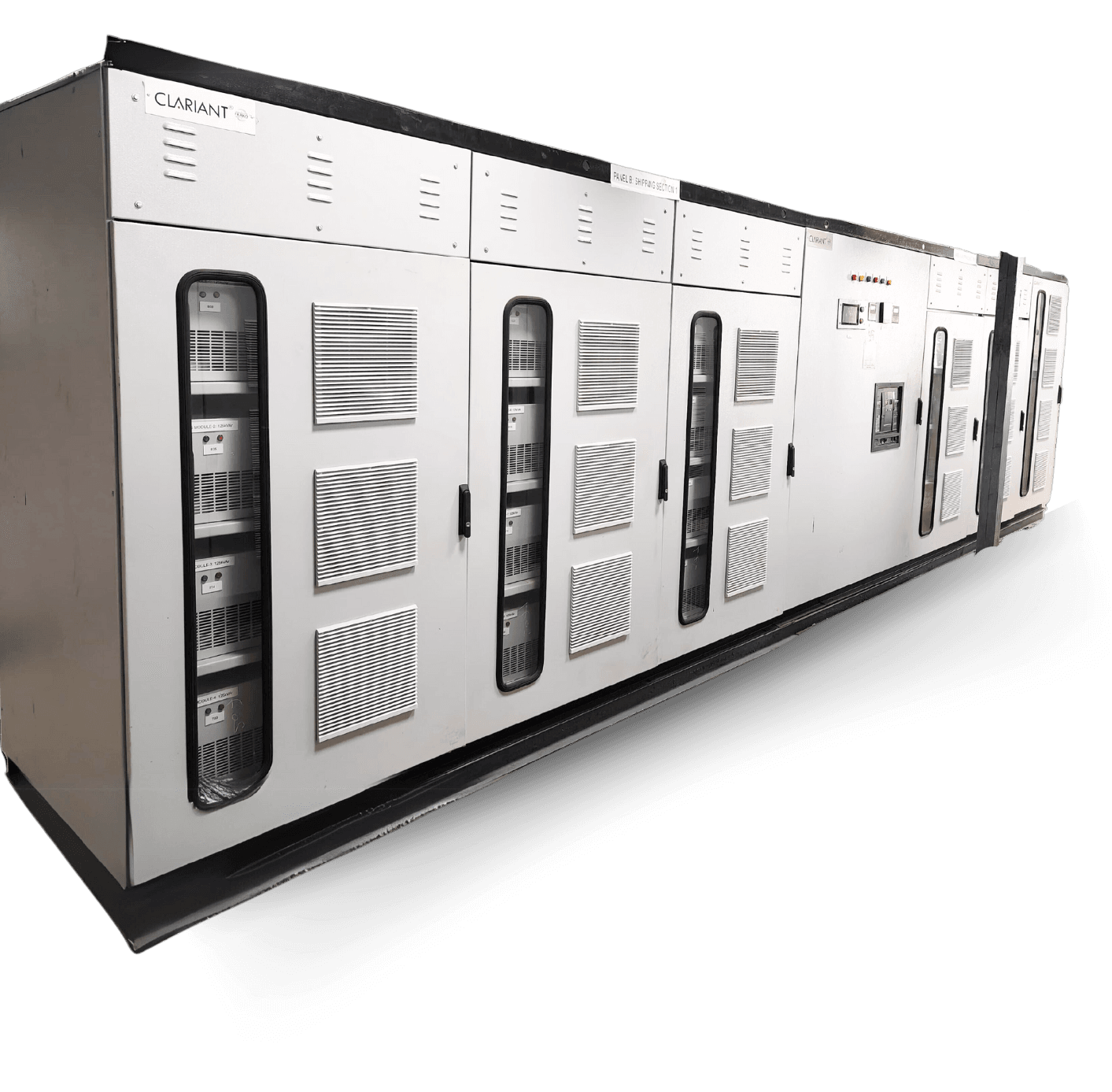

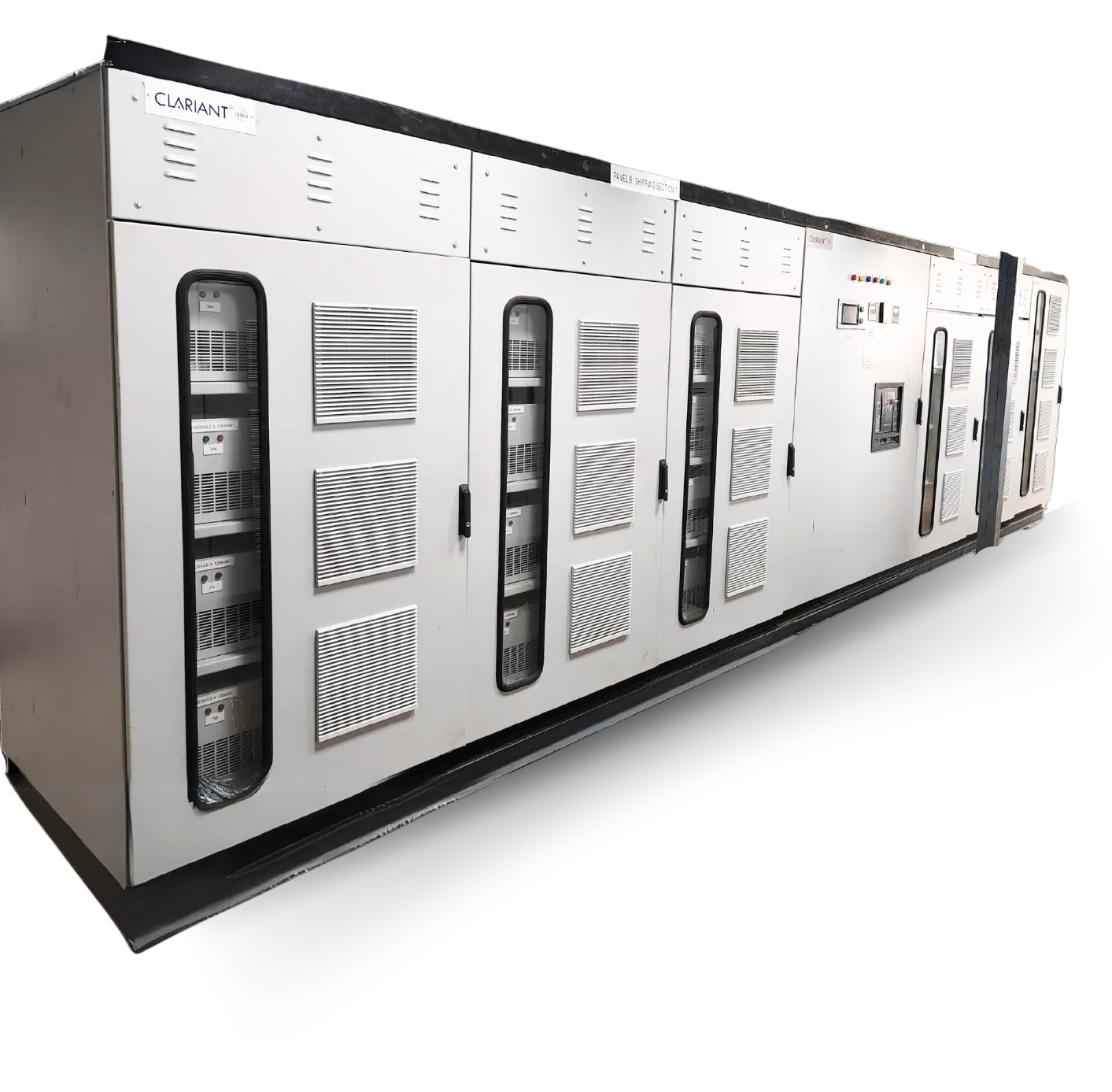

LV Static VAR Generators SVG/SVG+
Clariant Power System Limited’s Static VAR Generator (SVG) is a Step-less Solutions to improve Power Factor.
The use of most advanced controllability of 3-Phase 3-Level IGBT based voltage source inverter architecture, CPSL SVG does precise power factor and unbalance correction without the need of any passive power factor correction capacitors. These SVGs are designed in stackable modular configuration for increased resilience, reliability and redundancy.
The real-time reference value of the reactive power output of the SVG is precisely calculated in real-time by adjusting waveshape, magnitude and phase angles as per the target power factor entered by the user, and voltage and current values.
CPSL SVGs are powered with a sophisticated Artificial Neural Network-based control algorithm to achieve a set power factor, while always working in the background for real-time loss minimization, to achieve improved energy efficiency.
Benefits:
- Bi-directional Reactive Power Compensation (Compensates both Inductive and Capacitive KVAR).
- Near Unity P.F Correction at all load conditions.
- Low KVAR capacity dependency on grid fluctuations.
- Advanced technology and easy to use HMI Monitor with built-in-real-time measuring functionalities.
Technical Data:
System Voltage
400V…..690V RMS
Frequency
50/60 Hz (+/- 5%)
Output Capacity
50, 75, 100, 125, 150, 200 kVAr (Inductive/ Capacitive) scalable to higher capacities as needed
Controller & Control Method
ARM based MCU with Adaptive Artificial Neural Network (ANN)
Step-less Compensation Range
-100 KVAR to +125 KVAR
System Configuration
3P3W & 3P4W (Single phase option available)
Semiconductor Devices
IGBT's (3-Level Topology)
Operating Temperature Range
0 to 50°C
Parallel Communication
CAN Bus / Mini USB
Parelleling Operation
Upto 50 Modules
CT Configuration
Closed loop & Open loop
Dynamic Response Time
≤10ms
Step-less & Bidirectional Correction
Nil Harmonic Amplification chances
